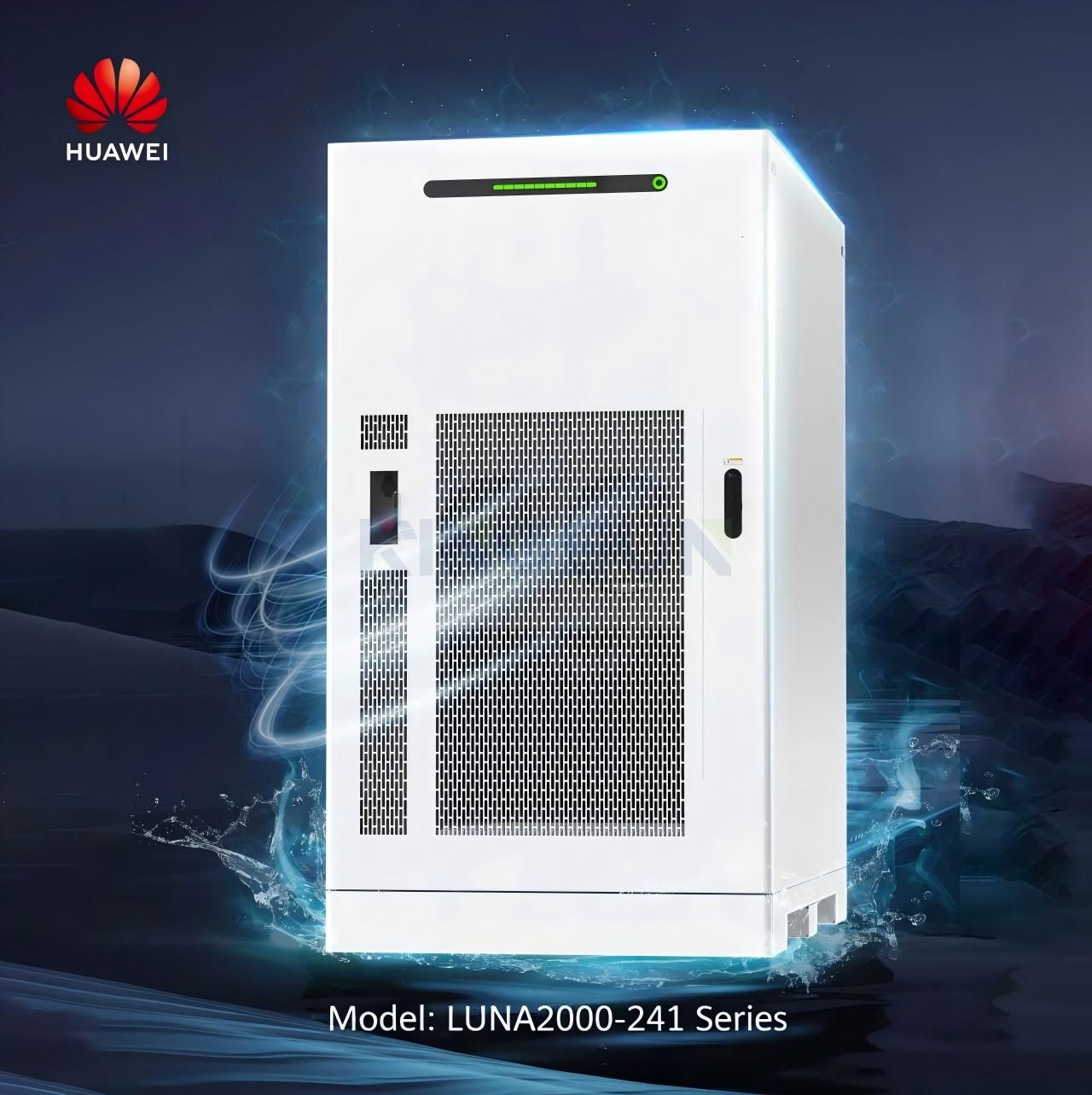

Huawei LUNA2000-241 Series

Huawei LUNA2000-241 Series

C&l Hybrid Cooling Grid Forming ESS

Unlock On-demand Energy, Keep All-time Safety

C2C Dual-link Safety: Full protection from cell to consumption scenarios

Lower LCOS: More usable energy, Simplified installation and O&M

Thermal Router: Lower energy consumption, longer lifespan, and higher reliability

One-Fits-All: One Management fits All LifeCycle, One solution fits All C&l Scenarios

Inherently Safe, All-time Safety

Huawei proposes the concept of "C2C Dual-link Safety architecture", that is electrical and thermal safety from cell, pack, system, to consumption. Such a comprehensive design ensures safety from products to applications and sets a new benchmark for C&I ESS safety.

C2C Electrical-link Safety: Short circuit prevention and isolation

The electrical safety is rigorously guaranteed with protection at every level, preventing short circuits.

Dual cell detecting: Detection of 13+ fault types and cloud-based risk warning.

Six-side pack insulation: Patented reinforced insulation materials are used to provide 6-side all-round protection for battery packs and internal cells to survive 30 days of corrosion by electrolyte and 1500 V voltage.

Five-level system protection: Five-level full-range over current protection, covering the AC/DC protection blind spot. Unique cell-to-ground short-circuit protection, rapid shutdown within 5ms.

24-hour consumption assurance: 24-hour real-time triple RCD, preventing personnel injury. Rapid shutdown of PCS in case of external short circuit to prevent personnel injury and internal components.

C2C Heat-link Safety: Thermal runaway suppression and protection

An active protection system provides full protection at all levels to ensure the safety of assets, property, and people.

Cell heat insulation and cooling：Inter-cell heat insulation and rapid liquid cooling, preventing thermal diffusion between cells.

Pack positive pressure oxygen barrier：IP65 protection, prevent oxygen from entering the battery pack and prevent fire inside the battery pack.

System directional gas exhaust：The combustible gases are exhausted through a L-shaped duct to prevent combustion and explosion inside the cabinet.

Consumption top explosion vent：Hourly fire resistance for assets safety. The top explosion vent design for personal safety.

Pro in Thermal Control

LUNA2000-241 Series are innovating on the thermal control side with an intelligent hybrid cooling architecture. It's all about optimizing temperature, cutting energy use,and making your energy storage system last longer and work better.

91.3%

Higher system efficiency

@0.25C

Intelligent Switching Between Multiple Modes

The "Thermal Router" features an advanced thermal management system for adaptive regulation and multi-mode switching based on ambient temperature conditions, similar to how the body regulates heart rate. 30% reduction in energy consumption

High temperature: Active liquid cooling mode. The liquid-cooled unit runs actively, low-temperature coolant to quickly cool the cells. The air-cooled module runs in parallel medium-temperature coolant to cool the PCS

Room Temperature: Natural air cooling mode. Only the air-cooled module runs. Medium-temperature coolant to cool the cells & PCS, lower power consumption

Low temperature: Waste heat utilization mode. Recycling PCS waste heat, heating the cold cells, extremely low power consumption

Longer Performance Life, More Reliable Operation

Achieve efficient thermal management through the optimization of heat dissipation. This entails different temperature zones design, ultra-low flow resistance path, and dual-loop convection cooling for cells. Our system promises a longer performance lifespan following the strategy of 2charge/discharge cycles per day.

More Energy

Each battery pack has a built-in energy optimizer2.0 with an efficient bidirectional balancing topology to improve system efficiency and achieve real-time active balancing without charge and discharge restrictions. This overcomes the short-board effect and increases the usable energy by 2% in the lifecycle.

2%

Increase in Life Cycle Discharge

Install Easier, Cost Lower

Organize the cabinets with our space-saving three-sided layout, cutting the front-to-back spacing to 30 cm. This integrated design enables a swift, effortless, cost-effective setup without extra wiring or trench digging during installation.

Three-phase four-wire PCS, no need for an isolation transformer. 10-year free coolant replacement, save operation and maintenance cost.

One Management fits All Lifecycle, Efficient Design and Operation

Smart design: Smart Design 2.0, optimal solution design within 1 minute, and hour-level precise benefit analysis.

Smart scheduling: Smart EMO 2.0, the prediction precision is > 90%, increasing the comprehensive revenue by 10%.

Smart O&M: Four-level monitoring from cell level to system. Online health diagnosis, locating of abnormal cells in seconds.
